How Is a Katana Made? Forging, Clay Coating and Yaki-Ire Explained
Short answer: a katana blade is made by selecting suitable steel, heating and forging it into a controlled shape, refining the profile, applying a clay-based coating and then carrying out Yaki-Ire, the hardening quench. The edge cools rapidly and becomes hard, while the more insulated body cools differently and remains tougher. Careful finishing and polishing then reveal the blade’s geometry, Hada and Hamon.
This description sounds simple, but every stage depends on the material and the smith’s judgement. Forging does not automatically guarantee quality, folding is not required for every modern steel, and a visible Hamon should not be confused with a pattern merely printed, painted or etched onto the surface.
Traditional Japanese Swords and Modern Handmade Katana Are Not the Same Category
A traditionally made Japanese sword, or nihonto, is produced in Japan under a regulated craft tradition. Traditional swordsmiths work with Tamahagane, steel smelted from iron sand in a Tatara furnace, and may combine steels with different carbon content in a laminated construction.
Modern handmade katana replicas made outside Japan commonly use industrial high-carbon steels such as 1060, 1095 or other modern alloys. Some are made from a single steel, while others use folded or pattern-welded material. These blades can involve genuine forging and heat treatment, but they should not be described as Japanese-made nihonto unless they truly meet that definition.

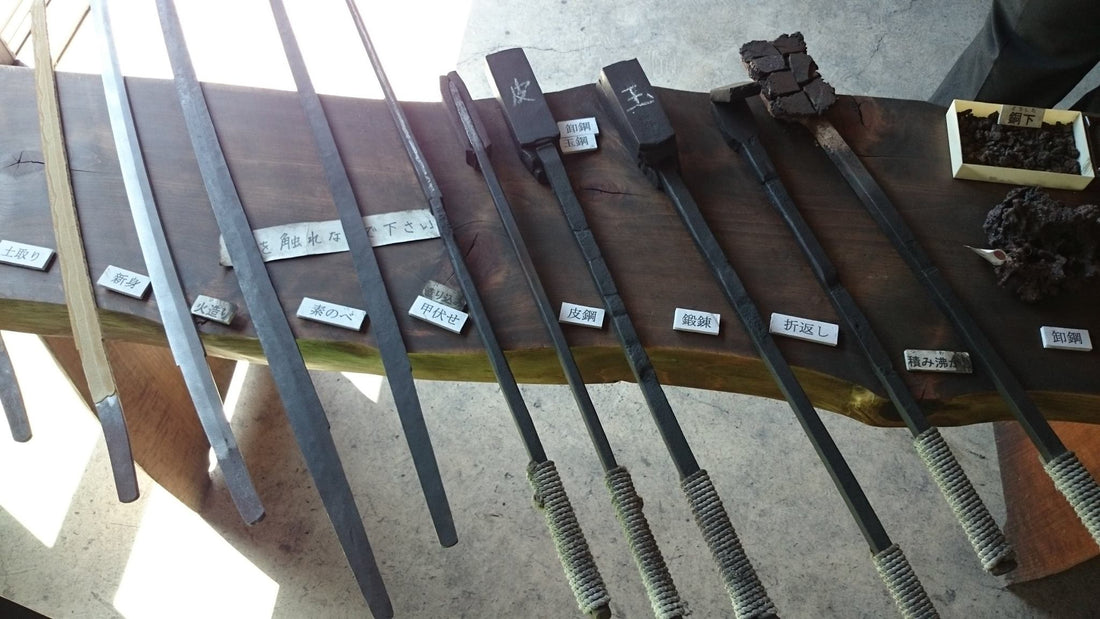

1. Selecting and Preparing the Steel
In traditional Japanese sword making, pieces of Tamahagane are selected according to their characteristics, consolidated by forge welding and repeatedly worked. Because bloomery steel is not perfectly uniform, the process helps distribute carbon and reduce slag while creating the visible steel structure later described as Hada.
Modern homogeneous steel begins from a more consistent material. A 1060 carbon-steel blade, for example, does not need to be folded simply to become usable. If modern steel is folded, the purpose is generally to create and control a layered pattern rather than to copy every metallurgical reason behind traditional Tamahagane folding.
2. Forging the Blade Blank
Forging means shaping heated steel through controlled hammer work. The smith first develops a long blade blank, often described by the Japanese term Sunobe, and progressively establishes thickness, width and material distribution.
“Hand-forged” and “folded steel” are not synonyms. A blade can be hand-forged from one piece of modern carbon steel without being folded. Conversely, visible layers show that the steel was combined or folded, but they do not by themselves prove good geometry, sound welds or successful heat treatment.
The quality of forging is judged by control: the steel should be worked evenly, welds must remain sound where layered material is used, and enough material must be left for the final blade form. Hammer marks alone are not evidence of superior craftsmanship.
3. Shaping the Katana Geometry
After the blank has been forged, the smith establishes the blade’s main geometry. This stage is often called Hizukuri. The edge, Shinogi ridge, Shinogi-Ji, Mune, Kissaki and Nakago are brought into proportion before hardening.
Good geometry matters as much as the steel label. A consistent Shinogi line, controlled thickness, clean transition into the Kissaki and correctly formed Nakago affect the appearance and structural integrity of the finished blade. The profile must also anticipate how the blade may move or curve during Yaki-Ire.
4. Clay Coating Before Yaki-Ire
Before hardening, the blade is coated with a clay-based mixture traditionally called Yakibatsuchi. The exact mixture and application vary by smith and steel. In the familiar differential-hardening method, the coating is generally thinner near the edge and thicker across the body and spine.
The clay does more than draw a decorative line. It changes how quickly different areas lose heat during quenching. The boundary created by the coating also influences the eventual Hamon pattern, whether relatively straight like Suguha or more irregular like Gunome, Notare or Choji.
The pattern must still suit the steel, blade shape and hardening conditions. A complicated clay design is not automatically better, and the smith cannot treat Yaki-Ire as if it were simply transferring a stencil onto the blade.
5. Yaki-Ire: Hardening the Edge
Yaki-Ire is the critical hardening stage. The coated blade is heated evenly until the steel reaches the required transformation condition, then quenched. Exact temperatures, timing and quench media depend on the material and the smith’s method; there is no single recipe suitable for every blade.
Where the edge cools rapidly, the steel can transform into hard martensite. Areas protected by a thicker coating cool more slowly and retain comparatively tougher structures such as pearlite and ferrite, or other mixed structures depending on the steel and process. This is known as differential hardening.
The operation creates intense thermal stress. A blade may warp, crack or fail during quenching, which is why Yaki-Ire is considered one of the most demanding stages of sword making. The blade’s curvature, or Sori, may also develop or change during this process rather than being produced only by hammering.
6. How Yaki-Ire Creates a Real Hamon
A genuine Hamon is the visible expression of the transition between differently hardened areas of the blade. It is not just the edge of the dried clay coating. The final appearance depends on the steel, clay application, heating, quench and polish.
Within and around the Hamon, a trained observer may see Nioi, Nie and activities such as Ashi, Sunagashi or Kinsuji. These details result from complex microstructural changes and become legible only after suitable polishing and lighting. A bold white line alone does not prove that all of these features are present.
Some decorative blades use acid etching, polishing contrast or other surface treatments to imitate or strengthen the appearance of a temper line. Etching can make an existing Hamon easier to see, but a purely applied pattern is not the same as a Hamon created through differential hardening.
7. Tempering, Correction and Polishing
Hardening is not the end of the process. A blade may receive a controlled tempering treatment, often discussed under the term Yaki-Modoshi, to reduce excessive brittleness and internal stress. The smith then checks alignment and makes careful corrections before the blade proceeds to finishing.
Traditional Japanese polishing is a separate specialist craft. The polisher refines the geometry and uses a progression of stones and finishing techniques to reveal the Hada, Hamon, Boshi and fine Hataraki without simply making the surface shiny. On modern replicas, polishing systems and finish levels vary widely, but the same principle remains useful: polish should clarify the blade rather than hide poor geometry.
What Do Common Katana-Making Terms Really Mean?
| Term | What it should mean | What it does not prove by itself |
|---|---|---|
| Hand-forged | The heated steel was shaped through hammer work rather than only ground from a finished flat profile. | Correct geometry, good steel or successful heat treatment. |
| Folded or Damascus steel | The material contains visible or engineered layers created through folding or pattern welding. | Traditional Tamahagane, a Japanese origin or automatically higher quality. |
| Clay-tempered | A clay coating was used to control differential hardening during quenching. | That the Hamon is attractive, the edge treatment succeeded or the blade is traditionally Japanese. |
| Real Hamon | A visible boundary and activity produced by the blade’s hardening structure. | Overall craftsmanship, provenance or the absence of added etching. |
What Should Collectors Look For?
When comparing a handmade katana, read beyond one marketing phrase. Look for a clear steel specification, a truthful explanation of whether the blade is mono-steel or folded, consistent geometry, an accurately described heat treatment and photographs that show the actual blade rather than only dramatic lighting.
A real Hamon is meaningful, but it is one part of the whole. Forging quality, Nakago construction, polish, Tsuka assembly and the fit of the Koshirae should be considered together. The most reliable descriptions explain what was done without claiming that every modern technique is identical to traditional Japanese sword making.
Frequently Asked Questions
Does forging automatically make a katana stronger?
No. Forging can refine shape and material distribution, but the result still depends on steel quality, temperature control, geometry, weld integrity and heat treatment. Poorly controlled forging can introduce flaws rather than remove them.
Does every folded-steel katana have a real Hamon?
No. Folding describes the structure of the steel, while Hamon formation relates to hardening. A folded blade can be through-hardened, differentially hardened or given a decorative surface pattern. These are separate specifications.
Is Damascus steel the same as traditional Japanese folded steel?
Not exactly. Modern “Damascus” commonly refers to pattern-welded or folded steels selected for a visible layered design. Traditional Japanese folding begins with Tamahagane and belongs to a different material system, regulatory context and craft lineage.
Why does polishing matter so much?
Polishing defines the final geometry and controls how the steel structures are seen. A suitable polish can reveal a real Hamon and Hada; an aggressive or purely decorative finish can obscure detail or create a misleading contrast.
Continue Learning About Japanese Sword Craft
To identify the structures revealed after forging and Yaki-Ire, read How to Read a Japanese Sword Blade: Hada, Hamon, Boshi & Hataraki. For the next stage of the mounting, see Hineri-Maki vs Katate-Maki: Katana Handle Wrap Styles.
Explore Handmade Katana Details
References and Further Reading
- The Metropolitan Museum of Art: The Japanese Blade – Technology and Manufacture
- The Japanese Sword Museum / NBTHK: Introduction to Japanese Swords – Hamon and Quenching
This article is an educational overview. Traditional methods vary between schools and smiths, and modern steels require process choices suited to their own composition.
